Eye bolt INOX

I63
.
13
Please select a product variant
Group
I6313

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Dimension d [mm]
Dimension L [mm]
Dimension B [mm]
Material
Dimension A [mm]
Dimension C [mm]
Dimension F [mm]
Dimension H [mm]
Unit

Step 2. Browse product variants and use additional filters

Prices in EUR without VAT per UNIT - with acceptance of complete packaging

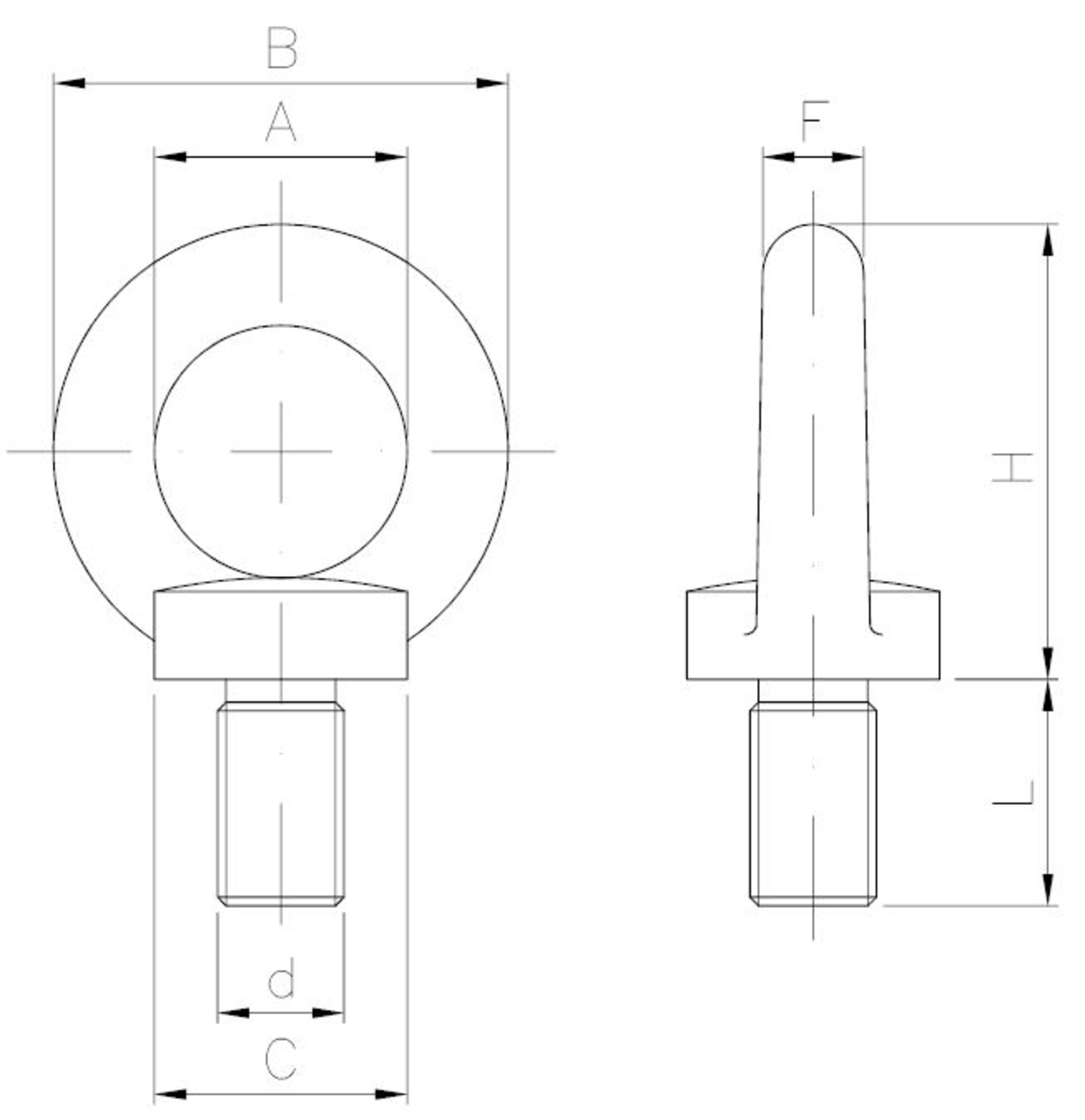

Dimension d [mm] Dimension L [mm] Dimension B [mm] Material Dimension A [mm] Dimension C [mm] Dimension F [mm] Dimension H [mm] Unit Price/Unit Packing Available quantity Requested quantity Product drawing and details Material index
More attributes
M6 13 28 A4 16 17 6 31 PCS 5 PCS I6313060A4580S
M8 13 36 A4 20 20 8 36 PCS 5 PCS I6313080A4580S
M10 17 45 A4 25 25 10 45 PCS 10 PCS I6313100A4580S
M12 20.5 54 A2 30 30 12 53 PCS 10 PCS I6313120A2S
M12 20.5 54 A4 30 30 12 53 PCS 10 PCS I6313120A4580S
M16 27 63 A4 35 35 14 62 PCS 10 PCS I6313160A4S
M20 30 72 A4 40 40 16 71 PCS 10 PCS I6313200A4580S
M24 34 90 A4 50 50 20 90 PCS 5 PCS I6313240A4580S
