Turnbuckle eye and eye

63
.
09
SRM-OO

A turnbuckle with eye and eye is an advanced fastening and securing component that is used in various fields, including construction, industry, recreation, and more. This product is equipped with two round openings (eyes), which allow for secure fastening and connection of different elements.

Applications:

Turnbuckles with eye and eye are designed for creating tension in metal and wooden structural elements in residential, collective housing, public utility, industrial, and warehouse buildings, as well as for tensioning and adjusting guy lines.

  • Construction: Turnbuckle eye and eye components are used in construction for securing various structural elements such as railings, steel cables, metal frameworks, and more.
  • Industry: In industrial applications, these products are used for assembling and securing machinery components and for organizing production space.
  • Recreation: Turnbuckle eye and eye components are utilized in recreational settings, such as in rope parks and climbing equipment.
  • Automotive: These products are employed in the automotive sector for securing racks and sporting equipment.
  • Other Uses: Turnbuckles can be applied in various fields, including general use, DIY projects, and many other applications.

Benefits:

  • Durability: The stainless steel construction ensures that the turnbuckles are exceptionally strong and resistant to damage.
  • Versatility: Turnbuckle eye and eye components allow for secure and stable connections of various elements.
  • Corrosion Resistance: The stainless material provides protection against corrosion, allowing for use in different weather conditions.
  • Precise Assembly: The design enables precise and secure installation of components.
Group
6309

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Dimension d [mm]
Type
Dimension D [mm]
Dimension A [mm]
Dimension B [mm]
Tensile load capacity [kN]
Dimension C [mm]
Dimension e [mm]
Unit

Step 2. Browse product variants and use additional filters

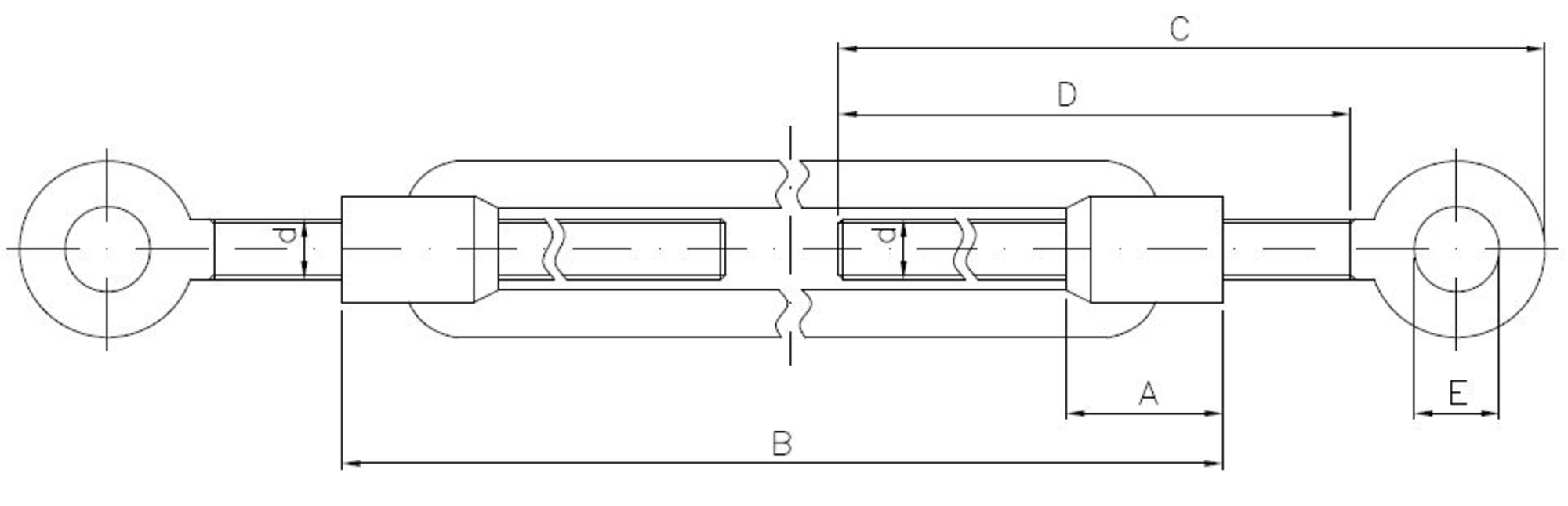

Dimension d [mm] Type Dimension D [mm] Dimension A [mm] Dimension B [mm] Tensile load capacity [kN] Dimension C [mm] Dimension e [mm] Unit Price/Unit Packing Available quantity Requested quantity Product drawing and details Material index
More attributes
M5 M 5x70 35 10 70 1.31 57 8 PCS 50 PCS 6309050070ATS
M6 M 6x110 55 12 110 1.73 80 9 PCS 50 PCS 6309060110ATS
M8 M 8x110 57 15 110 7.01 85 10 PCS 50 PCS 6309080110ATS
M10 M 10x125 68 18 125 21.18 105 14 PCS 25 PCS 6309100125ATS
M12 M 12x125 70 21 125 24.81 111 16 PCS 25 PCS 6309120125ATS
M14 M 14x140 75 25 140 25.02 124 18 PCS 10 PCS 6309140140ATS
M16 M 16x170 88 27 170 64.09 150 22 PCS 10 PCS 6309160170ATS
M18 M 18x200 98 32 200 72.55 160 25 PCS 10 PCS 6309180200ATS
M20 M 20x200 105 34 200 86.06 168 25 PCS 6309200200ATS
M22 M 22x220 118 34.5 220 96.60 190 28 PCS 5 PCS 6309220220ATS
M24 M 24x255 135 39 255 146.49 215 28 PCS 5 PCS 6309240255ATS
M30 M 30x255 135 42.5 255 190.07 224 31 PCS 5 PCS 6309300255ATS
×

:
